With self-developed high-performance barcode recognition algorithm, excellent DPM reading ability;
The algorithm is robust, and can effectively deal with the bar code dirt, defect, low contrast and other situations.

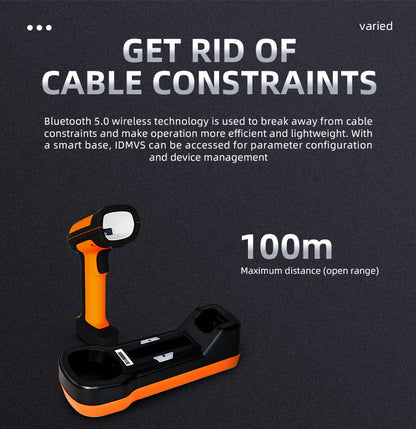

Bluetooth 5.0 wireless technology, get rid of cable bondage, more efficient and portable operation;

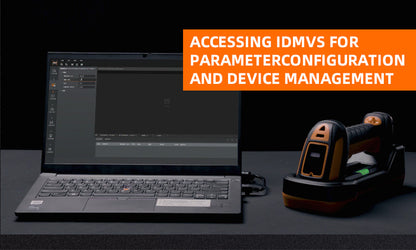

With an intelligent base, you can access the IDMVS for parameter configuration and device management.
3150 mAh capacity battery to ensure long life;
Advanced multi-light lighting system, support direct lighting and diffuse reflection;
Support IP65 protection and 1.8m height for multiple falls, not afraid of harsh industrial application environment;

Barcode category: one-dimensional Code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE, etc
Two-dimensional Code: QR Code, Data Matrix, etc
Bar code minimum accuracy: 3 mil
Max frame rate: 50 fps
Sensor type: CMOS, global shutter
Pixel size: 3µm × 3µm
Target surface Size: 1/4"
Resolution: 1280 × 800
Depth of field: Code 39 (3 mil) : 15 ~ 60 mm
Code 39 (5 mil) : 5 ~ 80 mm
Data Matrix (5 mil) : 10 ~ 70 mm
Data Matrix (10 mil) : 0 ~ 110 mm
QR Code (5 mil) : 10 to 70 mm
Field of view Angle: horizontal 31°, vertical 20°
Detection Angle: tilt Angle ±60°, deflection Angle ±60°, rotation Angle 360°
Symbol contrast: 20%

Bluetooth: BT 5.0, 2.4~2.4835 GHz band, BLE
Wireless range: 100m (open range)

Battery: 3150mAh, rechargeable lithium battery
Charging time: Adapter charging: 4 hours
USB charging: 8 hours
Number of scans: 26,000 (fully charged)
Power Supply: 3.8 VDC (battery powered)
Maximum power consumption: Standby mode: 1.1W @ 3.8VDC
Working mode: 6.4W @ 3.8VDC
Sleep mode: 0.8W @ 3.8VDC

Focal length: 6.7mm
Lens interface: M5.8-Mount
Ambient light: 0 ~ 100000 lux
Light source: Direct light: white LED
Diffuse: Red light LED
Sight: Cross laser aiming
Prompt mode: LED indicator, buzzer, vibrator

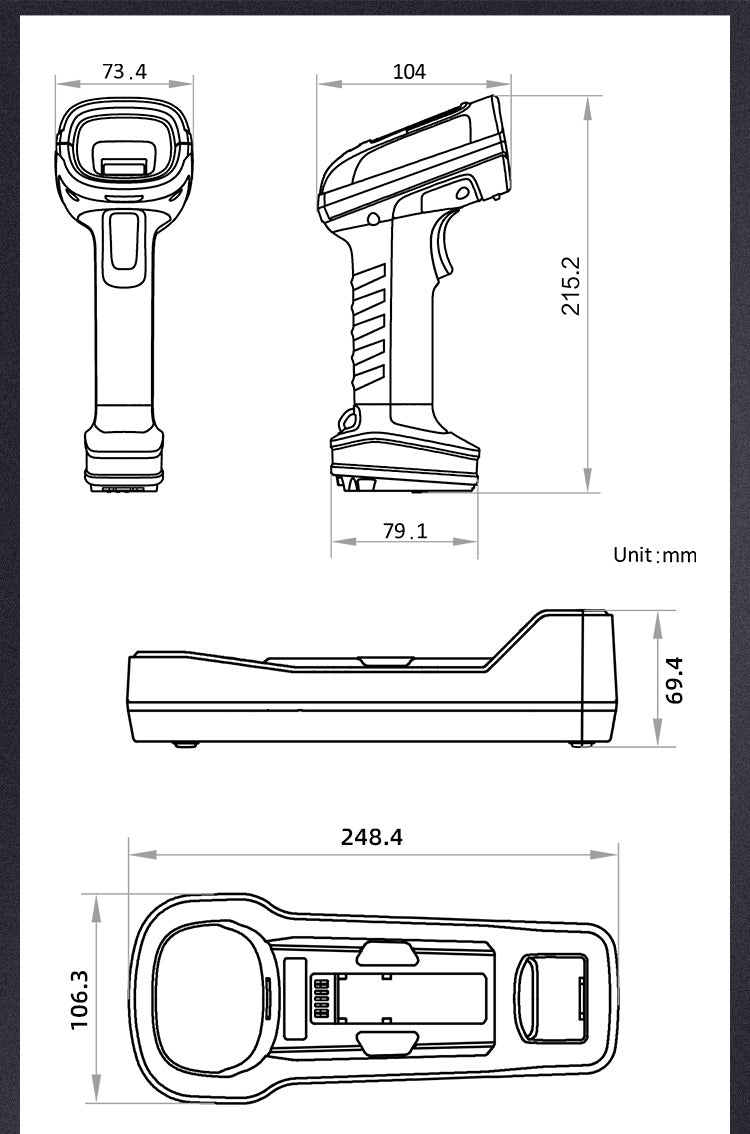

Dimensions: 73.4mm × 104mm × 215.2mm
Weight: About 410 g
IP protection level: IP65
Temperature: working temperature -20 ~ 50℃, storage temperature -30 ~ 60℃, battery charging temperature 0 ~ 45℃
Humidity: 20%-95% RH does not condense

Software: IDMVS
Certification: CE, FCC
