With the self-developed high-performance barcode recognition algorithm, one-dimensional code and two-dimensional code can be read efficiently in the standard distance of the industrial scene;
The algorithm is robust, and can effectively deal with the bar code dirt, defect, low contrast and other situations.
Continuous and batch read modes are supported, greatly improving the reading efficiency in multi-code scenarios.
Support TCP, Serial, FTP, Profinet, EthernetIP, MELSEC/SLMP, Fins, Modbus, USB HID, USB CDC and other transport protocols;

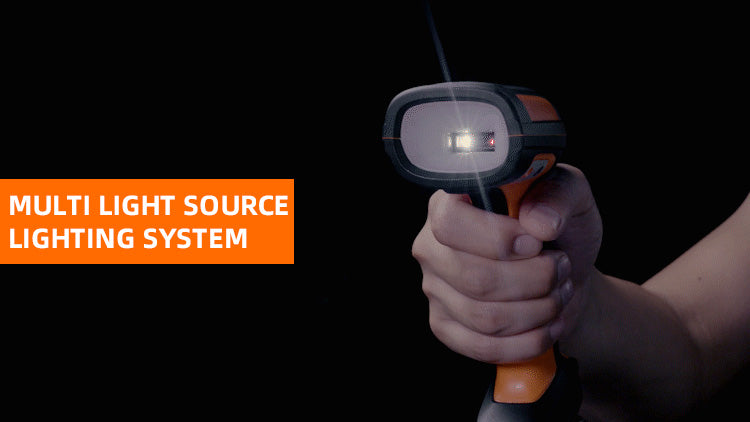

Multi-source lighting system, support direct lighting and diffuse lighting, applicable to reflective scenes;
The appearance adopts wire separation design, easy to replace and use;
IP65 protection and 1.8m drop height, not afraid of harsh industrial application environment;

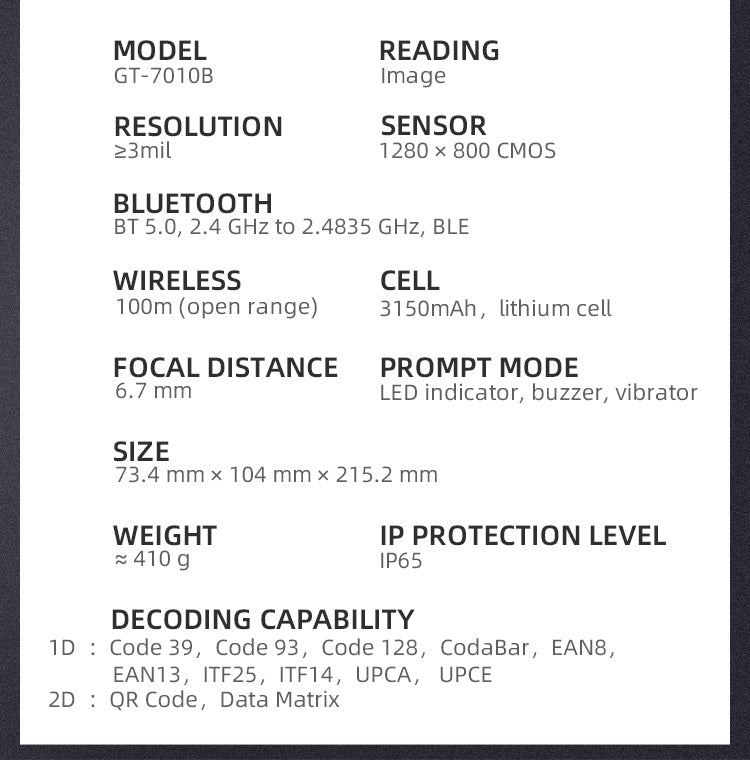

Barcode category: one-dimensional Code: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN8, EAN13, ITF14, UPCA, UPCE, etc
Two-dimensional Code: QR Code, Data Matrix, etc
Bar code minimum accuracy: 3 mil
Max frame rate: 50 fps
Sensor type: CMOS, global shutter
Pixel size: 3µm × 3µm
Target surface Size: 1/4"
Resolution: 1280 × 800
Depth of field: Code 39 (5 mil) : 30 ~ 200 mm
Code 128 (3 mil) : 55 ~ 110 mm
Code 128 (20 mil) : 56 ~ 660 mm
Data Matrix (10 mil) : 20 ~ 220 mm
QR Code (10 mil) : 20 ~ 220 mm
QR Code (20 mil) : 10 ~ 450 mm
Field of view Angle: horizontal 31°, vertical 20°
Detection Angle: tilt Angle ±60°, deflection Angle ±60°, rotation Angle 360°
Symbol contrast: 20%
Communication protocol: SmartSDK, USB (HID/CDC)

Interface: USB2.0, DC terminal
Power supply: USB2.0:5 VDC
DC terminal: 12 to 24 VDC
Maximum power consumption: USB2.0:4.6 W@5 VDC
DC terminal: 6 W@24 VDC

Focal length: 6.7mm
Lens interface: M5.8-Mount
Ambient light: 0 ~ 100000 lux
Light source: direct light: white LED; Diffuse: Red light LED
Sight: Cross laser aiming
Dimensions: 73.4mm × 104mm × 229.5mm
Weight: About 460 g
IP protection level: IP65
Temperature: Operating temperature -20 ~ 50°C, storage temperature -30 ~ 70°C
Humidity: 20%-95% RH does not condense

Software: IDMVS
Certification: CE, FCC
