With self-developed high-performance barcode recognition algorithm, it can efficiently read one-dimensional code and two-dimensional code in industrial scenes;
The algorithm is robust, and can effectively deal with the bar code dirt, defect, low contrast and other situations.
Continuous and batch read modes are supported, greatly improving the reading efficiency in multi-code scenarios.
Support TCP, Serial, FTP, UDP, USB HID, USB CDC and other transmission protocols;
The appearance adopts wire separation design, easy to replace and use;

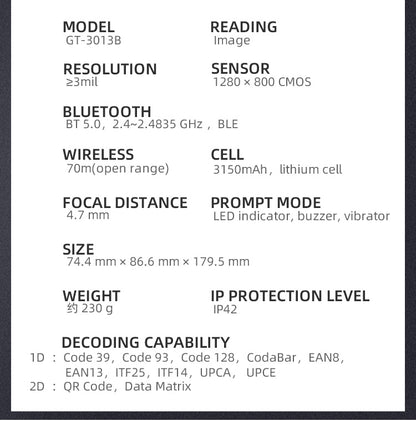

Barcode category: one-dimensional Code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, Matrix 2 of 5, ITF14, UPCA, UPCE, etc
Two-dimensional Code: QR Code, Data Matrix, etc
Bar code minimum accuracy: 3 mil
Max frame rate: 50 fps
Sensor type: CMOS, global shutter
Pixel size: 3µm × 3µm
Target surface Size: 1/4"
Resolution: 1280 × 1024
Depth of field: Code 128 (3 mil) : 35 ~ 80 mm
Code 128 (10 mil) : 10 ~ 170 mm
Code 39 (5 mil) : 15 ~ 100 mm
Code 39 (20 mil) : 20 ~ 250 mm
Data Matrix (10 mil) : 5 ~ 115 mm
QR Code (20 mil) : 20 to 190 mm

Field of view Angle: horizontal 40°, vertical 34°
Detection Angle: tilt Angle ±60°, deflection Angle ±60°, rotation Angle 360°
Symbol contrast: 20%
Communication protocols: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial

Interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Power supply: 12 to 24 VDC
Maximum power consumption: 1.8 W@12 VDC

Focal length: 4.7mm
Lens interface: M5.8-Mount
Ambient light: 0 ~ 100000 lux
Light source: Red LED

Sight: Cross laser aiming
Prompt mode: LED indicator, buzzer, vibrator
Dimensions: 74.4mm × 86.6mm × 190.2mm
Weight: About 160 g
IP protection level: IP42
Temperature: Working temperature -20 ~ 50℃, storage temperature -40 ~ 70℃
Humidity: 20%-80% RH does not condense

Software: IDMVS
Certification: CE, KC
